Tech Specs
Hollywood Theatre's Technical Specifications
Stage plot available upon request.
STAGE DIMENSIONS
WIDTH - 30ft. 10’ inches, DEPTH - 17ft.
STAGE HEIGHT - Floor to Stage Deck = 4ft.
STAGE HEIGHT - Stage Deck to Ceiling, approx. 18ft. 8 1/2inches
(Ceiling slopes down from DS to US)
STAGE FLOOR - Masonite, Painted Flat Black. Not Sprung.
STAGE HEIGHT - Floor to Stage Deck = 4ft.
STAGE HEIGHT - Stage Deck to Ceiling, approx. 18ft. 8 1/2inches
(Ceiling slopes down from DS to US)
STAGE FLOOR - Masonite, Painted Flat Black. Not Sprung.
GREEN ROOM
196sq. ft. (19L x 10W)
Includes: Stage View Monitor, Clearcom Speaker Station One (1) Universal Washroom with sink, toilet, mirror and shower.
Includes: Stage View Monitor, Clearcom Speaker Station One (1) Universal Washroom with sink, toilet, mirror and shower.
DRAPERY
Main Drape & Valence – Rose Brand 20oz IFR Velour “Plum” with Gold Stripe – Motorized, Controllable from Stage Right and Projection Booth
Midstage Traveller – Rose Brand 13oz IFR Velour – Black. Manually operated from Stage Right
Upstage Traveller – Rose Brand 13oz IFR Velour – Black. Manually operated from Stage Right.
Banner Pipe – Upstage of Traveller
Upstage Wall – Painted Drywall
Side Stage Germans – Rose Brand 13oz IFR Velour
Midstage Traveller – Rose Brand 13oz IFR Velour – Black. Manually operated from Stage Right
Upstage Traveller – Rose Brand 13oz IFR Velour – Black. Manually operated from Stage Right.
Banner Pipe – Upstage of Traveller
Upstage Wall – Painted Drywall
Side Stage Germans – Rose Brand 13oz IFR Velour
IMPORTANT NOTES
No open flame, pyrotechnics, flash paper, flash pots or fireworks or oil-based smoke machine effects of any kind allowed onstage or in the building. Absolutely NO glitter, confetti, streamers or sparkles permitted in the theatre. A cleaning fee of $3000.00 will be applied to any rental, event, promoter, producer or artist, if glitter, streamers or sparkles are used by either performers or patrons. Atmospheric effects, such as, but not limited to Cryojets, CO2 fog, smoke, haze, must be approved by venue management before being use in the theatre.
SOUND

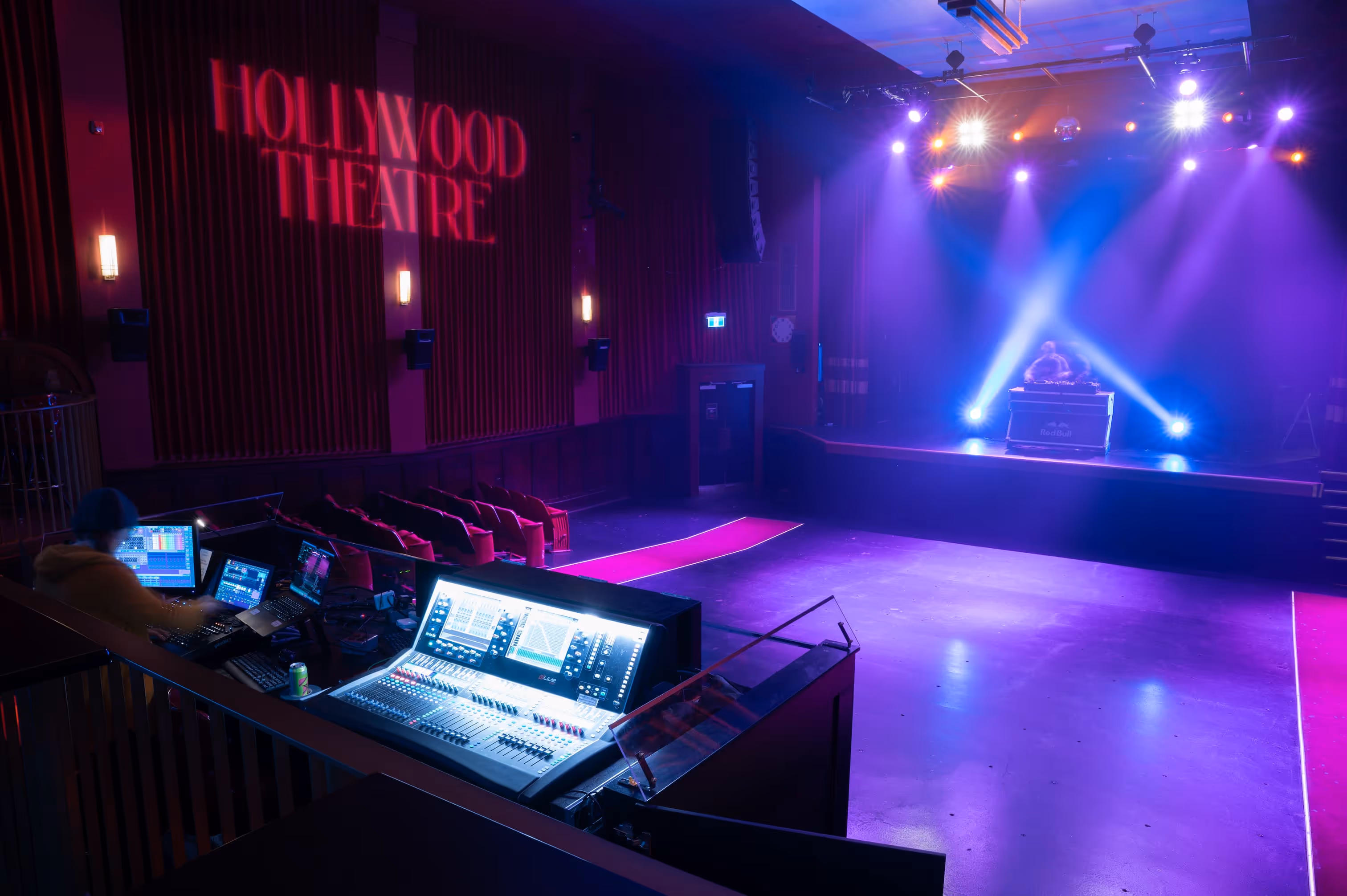

FOH CONSOLE: 1 Avid Venue Profile 48×24QSC TouchMix8 (For small events)
P.A: 12 D&B V8 3 way loudspeakers, 4 D&B V12 3 way loudspeakers, 4 D&B J-SubThe Main PA is in a Left/Right configuration, permanently flown downstage of the Prosceniumon 1⁄2 Ton D8+ Chain Motors; there are 8 cabinets aside. The subwoofers are located under the stage lip, 2x per side.
FRONT FILL SPEAKERS: 2 D&B Y7P loudspeakers Front fill speakers are portable, can be onstands, or as stage lip fills as needed.
REAR FILL SPEAKERS: 2 D&B V10P 3 way loudspeaker Rear fill speakers are permanentlyhung from the Balcony Rail
P.A: 12 D&B V8 3 way loudspeakers, 4 D&B V12 3 way loudspeakers, 4 D&B J-SubThe Main PA is in a Left/Right configuration, permanently flown downstage of the Prosceniumon 1⁄2 Ton D8+ Chain Motors; there are 8 cabinets aside. The subwoofers are located under the stage lip, 2x per side.
FRONT FILL SPEAKERS: 2 D&B Y7P loudspeakers Front fill speakers are portable, can be onstands, or as stage lip fills as needed.
REAR FILL SPEAKERS: 2 D&B V10P 3 way loudspeaker Rear fill speakers are permanentlyhung from the Balcony Rail
MONITORS
MONITOR CONSOLE: 1 Avid SC48
8 D&B M4 15” monitor loudspeakers
1 D&B Bi6 Subwoofer monitor
There are 8 monitor mixes available onstage
8 D&B M4 15” monitor loudspeakers
1 D&B Bi6 Subwoofer monitor
There are 8 monitor mixes available onstage
MICROPHONE PACKAGE
9 x Shure SM58
2 x Shure Beta 52A Microphone
2 x Shure Beta 91 Microphone
4 x Sennheiser E609 Microphone
6 x Sennheiser 604 Microphone
5 x Shure SM57 Microphone
6 x Shure SM81 Microphone
2 x Sennheiser 421 Microphone
7 x Radial JDI Passive DI
1 x Radial JPC Stereo Active DI Box
20 x K&M Tall tripod stand with telescopic boom
20 x K&M Short tripod stand with telescopic boom
4 x Round Base Tall Mic stands
1 x Shure ULXD Dual Channel Wireless Receiver
2 x Shure Beta 58A Wireless Handheld Transmitter
2 x Shure Beta 52A Microphone
2 x Shure Beta 91 Microphone
4 x Sennheiser E609 Microphone
6 x Sennheiser 604 Microphone
5 x Shure SM57 Microphone
6 x Shure SM81 Microphone
2 x Sennheiser 421 Microphone
7 x Radial JDI Passive DI
1 x Radial JPC Stereo Active DI Box
20 x K&M Tall tripod stand with telescopic boom
20 x K&M Short tripod stand with telescopic boom
4 x Round Base Tall Mic stands
1 x Shure ULXD Dual Channel Wireless Receiver
2 x Shure Beta 58A Wireless Handheld Transmitter
AUDIO CABLE PACKAGE
1 x 50 Channel Isolated Mic Split
Mic split is located downstage left.
3 x 12 Channel 50’ Subsnake
3 x 12 Channel 75’ Subsnake
20 x 15′ XLR Mic Cable
50 x 25′ XLR Mic Cable
10 x 50′ XLR Mic Cable
Mic split is located downstage left.
3 x 12 Channel 50’ Subsnake
3 x 12 Channel 75’ Subsnake
20 x 15′ XLR Mic Cable
50 x 25′ XLR Mic Cable
10 x 50′ XLR Mic Cable
DJ BACKLINE PACKAGE
MIXER: DJM-900NXS2
2 CDJ3000's
2 Technics 1210 Turntables
6 ft. DJ PLATFORM
2 CDJ3000's
2 Technics 1210 Turntables
6 ft. DJ PLATFORM
CINEMA SYSTEM
CINEMA SCREEN: Dimensions: 25ft wide x 13ft 6 in wideStrong Nightview XL Motorized Projection Screen Remote controllable from the stage, orprojection booth.
CINEMA SOUND: Mains (Left, Centre Right) – C222HP (1 Per Channel, 3 Total)The operating position is fixed behind the screen.Subwoofers – 2 JBL 4642A Subwoofers are located under the stage lipSurrounds – JBL 9300 (10 Sides, 4 Rears)Processing – Dolby CP950 Digital Cinema Processor, Crown DSi Series AmplifiersOur system is configured for Dolby 7.1 Surround Sound.
CINEMA PROJECTOR: Barco DP2K-10SLP – 2k Resolution, 10,000 Lumen, Laser Projector w/ Barco Alchemy 1TB Server, Video Input Scaler.Our projector is compatible with DCP cinema video packages and has an HDMI input for auxiliary signals.
VIDEO DISTRIBUTION: HDMI via CAT5E distribution from FOH, Stage, or Projection Booth.Video encoders are capable of 4k.
CINEMA SOUND: Mains (Left, Centre Right) – C222HP (1 Per Channel, 3 Total)The operating position is fixed behind the screen.Subwoofers – 2 JBL 4642A Subwoofers are located under the stage lipSurrounds – JBL 9300 (10 Sides, 4 Rears)Processing – Dolby CP950 Digital Cinema Processor, Crown DSi Series AmplifiersOur system is configured for Dolby 7.1 Surround Sound.
CINEMA PROJECTOR: Barco DP2K-10SLP – 2k Resolution, 10,000 Lumen, Laser Projector w/ Barco Alchemy 1TB Server, Video Input Scaler.Our projector is compatible with DCP cinema video packages and has an HDMI input for auxiliary signals.
VIDEO DISTRIBUTION: HDMI via CAT5E distribution from FOH, Stage, or Projection Booth.Video encoders are capable of 4k.
CLEARCOM
2 Channel (A/B) Clearcom MS702 BaseStation, Located in Projection Booth.
Patch ports available (Dual XLR 3): DSL, DSR, MON World, FOH, Projection Booth
Green Room has a Wallmounted Speaker Unit.
Portable Gear: 4 Dual Channel Beltpacks, 3 Single Muff Headsets, 2 Telephone Headsets, 2 Call Flashers
Patch ports available (Dual XLR 3): DSL, DSR, MON World, FOH, Projection Booth
Green Room has a Wallmounted Speaker Unit.
Portable Gear: 4 Dual Channel Beltpacks, 3 Single Muff Headsets, 2 Telephone Headsets, 2 Call Flashers
LIGHTING FIXTURES
MAIN FIXTURE HANG: 12 ETC Colorsource Spots12 Elation Artiste DaVinci Moving Lights8 Elation Fuze Wash Z1204 American DJ Vizi BSW 3002 Elation Protron 3k White Strobe Lights2 Elation Cuepix WW4 Blinders6 Elation Rayzor 360Movable Floor Package:4 Elation Fuze Wash Z120
ADDITIONAL NOTES: House hang lighting plot available upon request. If the house stage plotis modified it must be restored at the end of the event by the event producer.
CONSOLE: GrandMA 3 Compact w/ Extra 24” Touchscreen Monitor – Currently Running MA2Software.
NETWORK/POWER/HOUSELIGHT CONTROL: ETCnet3 (sACN) DMX Output Nodes at allpositions. DMX Input Node available at FOH32 Switched 120v 20a Edison Power Outlets, spread across hanging positionsOur houselights are controlled from the House Lighting Console, or via a networked touch screen at FOH. Worklights are controllable via networked touchscreen at FOH
HANGING POSITIONS: 2 Onstage Lighting Pipes (17ft above the stage deck) 24 foot x 8 footApron Lighting Grid (Motorized, WLL 1850lbs) FOH Lighting Pipe, Downhouse TormentorsUphouse Tormentors, Balcony Rail
OTHER: 1 Look Solutions Unique 2.1 Hazer, 1 40” Mirror Ball – Motorized, Hung off of apronlighting grid, Misc Gobo Collection
ADDITIONAL NOTES: House hang lighting plot available upon request. If the house stage plotis modified it must be restored at the end of the event by the event producer.
CONSOLE: GrandMA 3 Compact w/ Extra 24” Touchscreen Monitor – Currently Running MA2Software.
NETWORK/POWER/HOUSELIGHT CONTROL: ETCnet3 (sACN) DMX Output Nodes at allpositions. DMX Input Node available at FOH32 Switched 120v 20a Edison Power Outlets, spread across hanging positionsOur houselights are controlled from the House Lighting Console, or via a networked touch screen at FOH. Worklights are controllable via networked touchscreen at FOH
HANGING POSITIONS: 2 Onstage Lighting Pipes (17ft above the stage deck) 24 foot x 8 footApron Lighting Grid (Motorized, WLL 1850lbs) FOH Lighting Pipe, Downhouse TormentorsUphouse Tormentors, Balcony Rail
OTHER: 1 Look Solutions Unique 2.1 Hazer, 1 40” Mirror Ball – Motorized, Hung off of apronlighting grid, Misc Gobo Collection
STAGE POWER
100amp 3phase Camlok E1016 available Downstage Right. ETC Powersafe Compact 100A.Double Camlok Connections with interlocking safety doors.
GROUND AND NEUTRAL FLIPPED
We do not have an in-house distro, promoters/productions will need to supply their own.
GROUND AND NEUTRAL FLIPPED
We do not have an in-house distro, promoters/productions will need to supply their own.
LIVE at The Hollywood Production Technical infrastructure includes
Cinema switching infrastructure
Projection system and webstreaming
D&B Live Concert line-array sound system
Concert & Broadcast quality Lighting system
Western Canada’s first Barco Laser Projector (2k res/10k lumen)
25x18ft retractable movie screen
Cinema 7.1 surround-sound system
Projection system and webstreaming
D&B Live Concert line-array sound system
Concert & Broadcast quality Lighting system
Western Canada’s first Barco Laser Projector (2k res/10k lumen)
25x18ft retractable movie screen
Cinema 7.1 surround-sound system
If you have any questions regarding The Hollywood Theatre’s technical specifications please feel free to contact us:
Robert Barrington
Technical Director
rob@hollywoodtheatre.ca
rob@hollywoodtheatre.ca
